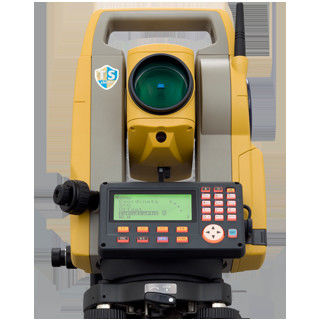

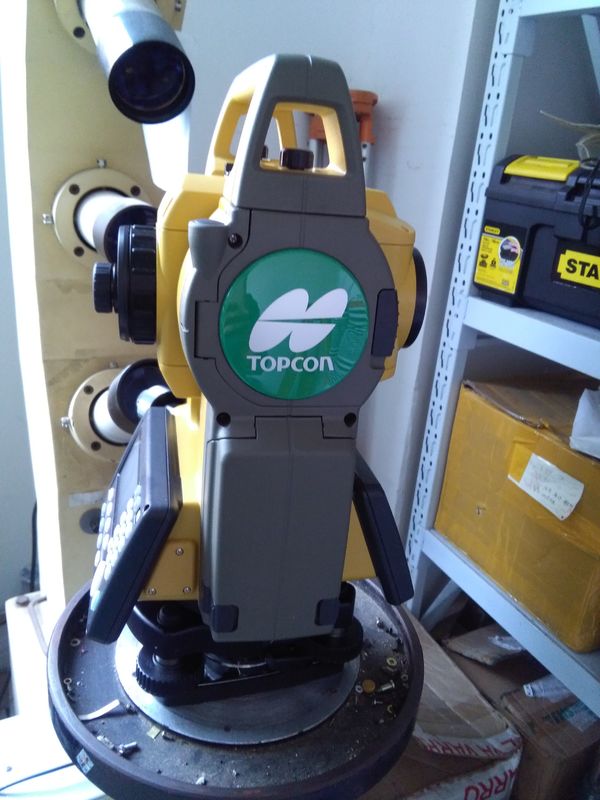

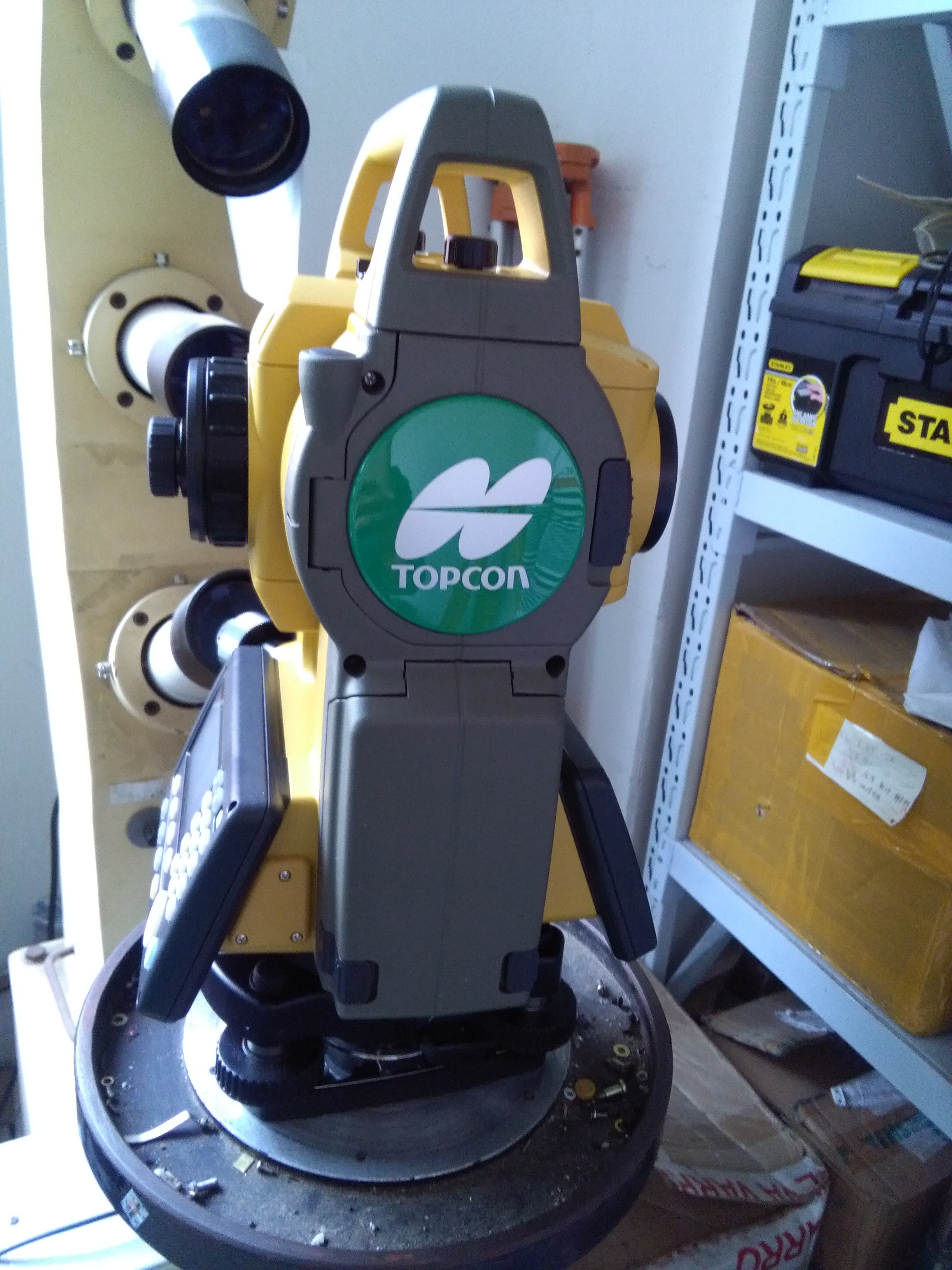

Topcon ES602G Total Station

Informação Básica

Lugar de origem:	China
Marca:	Topcon
Número do modelo:	ES602G

Quantidade de ordem mínima:	1PC
Detalhes da embalagem:	com a capa de plástico interna e a caixa exterior
Tempo de entrega:	dentro de 3-5days após os bens seja pago.
Termos de pagamento:	TT
Habilidade da fonte:	10000 pelo ano

Melhor preço contacto

Informação detalhada

Destacar:

robotic total station

manual total station

Descrição de produto

ES-600G Technic Data
Model		ES-602G	ES-605G
Telescope
Magnification /Resolution		30X/2.5"
Others		Length of Lens: 171mm,Objective Aperture :45mm(EDM:48mm),Erect, Field Of View: 1˚30′(26m/1,000m),Minimum Focus: 1.3m, Back light:5 Class
Angle Measurements
Minimum Reading		1"/5"
Angle Measurements Accuracy (ISO17123-3:2001)		2"	5"
Dual Axis Compensator/Collimation Error Correction		Liquid twin screw tilt sensor ,Compensator Range ±6′/Collimator Correction
Measuring Distance Part
Laser output grade		Non prism:3R grade ,prism /reflctor sheet 1 grade
Measuring Range (the general weather condition )	Non prism	0.3～500m
	Reflector Sheet	RS90N-K:1.3～500m；RS50N-K:1.3～300m；RS10N-K:1.3～100m
	Mini Prism	1.3～500m
	Single Prism	1.3～4,000m/ good weather condition *6:1.3～5,000m
Mini Display		Fine Measuring/Rapid Measuring:0.001m Tracking:0.01m
Distance Measuring Accuracy (ISO17123-4:2001)	Non Prism	(3+2ppm×D)mm*7
	Reflector Sheet	(3+2ppm×D)mm
	Prism	(2+2ppm×D)mm
Measuring Time		Fine:0.9s,Rapid :0.7,Tracking:0.3s
Port and Data Management
Display/ Key Board		Adjective Contrast Ratio ,with backlight 192×80point ,Dot Matrix LCDS graphic display / with backlight 25 key ( Alphabet Number keyboard) .
Operating Panel		Double Side
Trigger Key		On the right side of instrument, A key Trigger
Data memory	Internal Memory	About 10,000 points
	External Memory	USB flash Memory (Max. 8GB)
Port		RS-232C serial port,USB2.0(A port,to use connect with U display)
Bluetooth Model (optional)		1 Grade Bluetooth, Ver.2.1 +EDR,Transfer Distance:300m*10
Others
Laser Alignment		Coaxial red EDM laser beam
Guid light		Green Laser Diode(524nm)and red laser Diode(626nm),Work Rang: 1.3～150m
Spirit Level	Electronic Spirit Level	6′(inner circle )
	Circle Spirit Level	10′/2mm
Laser Plummet ( Optional)		2 Grade laser products, Red laser Diode (635nm±10nm),Plummet Accuracy: ≦1.0mm/1.3m
Optics Plummet		Magnification:3X,Minimus Focus: 0.3m(From Tribrach)
Dustproof and Waterproof		IP66(ICE 60529:2001)
Work Temperature		-20～+60℃
Size(including handle)		191mm(W)×181mm(L)×348mm(H)
Weight (including Handle and Battery)		5.6kg
Power System
Battery	BT-L2 On Board Battery	Recharger Battery
Work Time		About 25 Hours ( the different between the angle measuring and distance measuring 1 time /30s)
